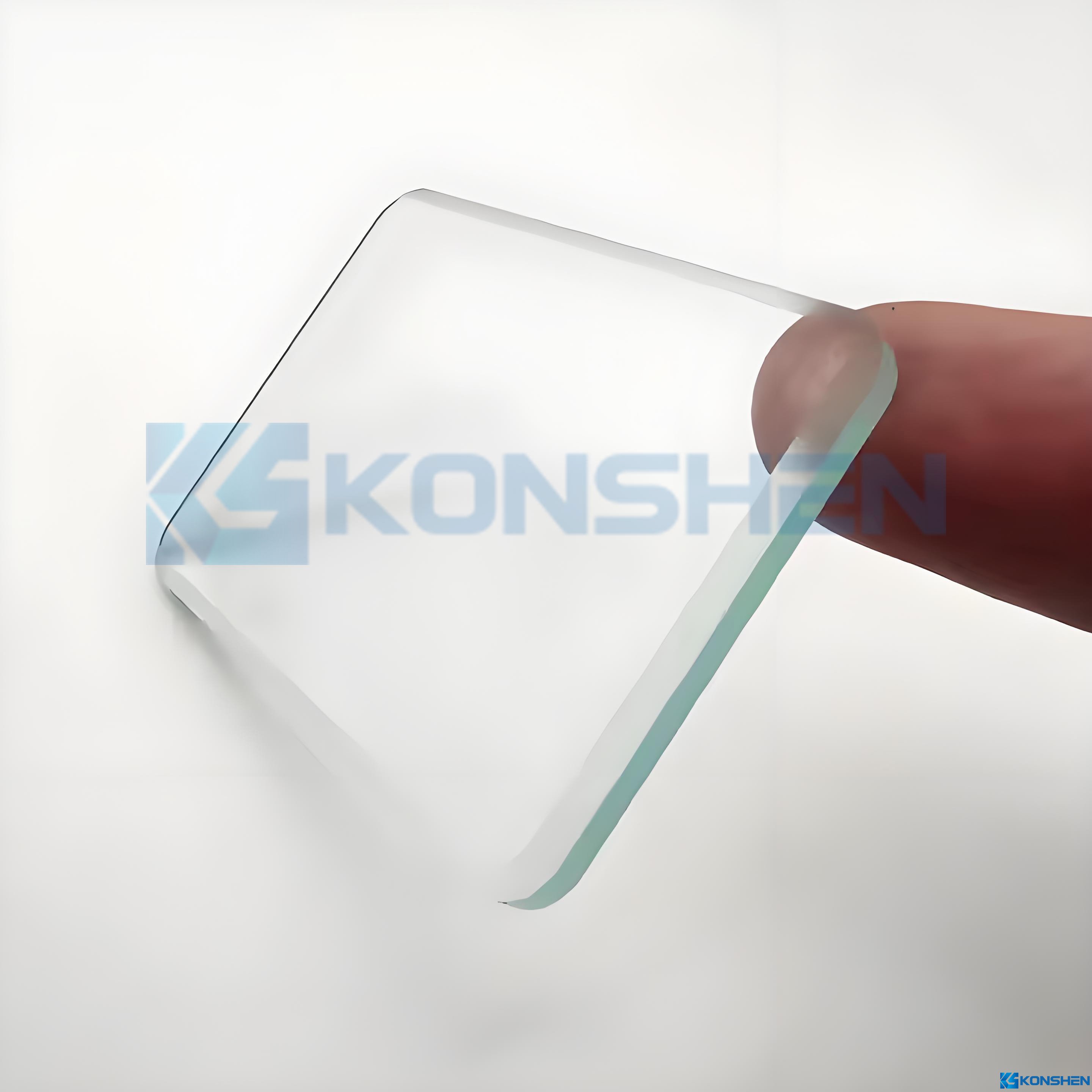

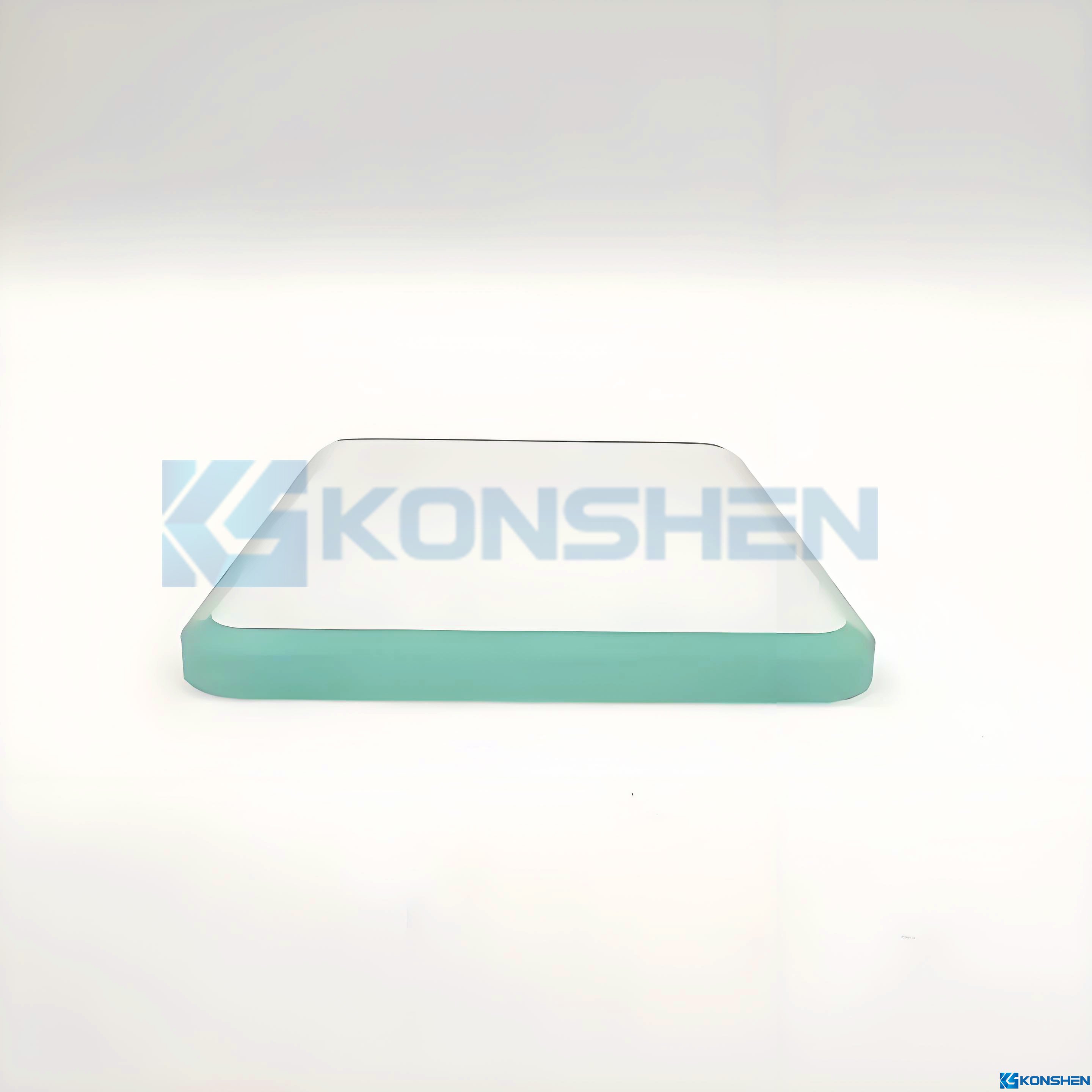

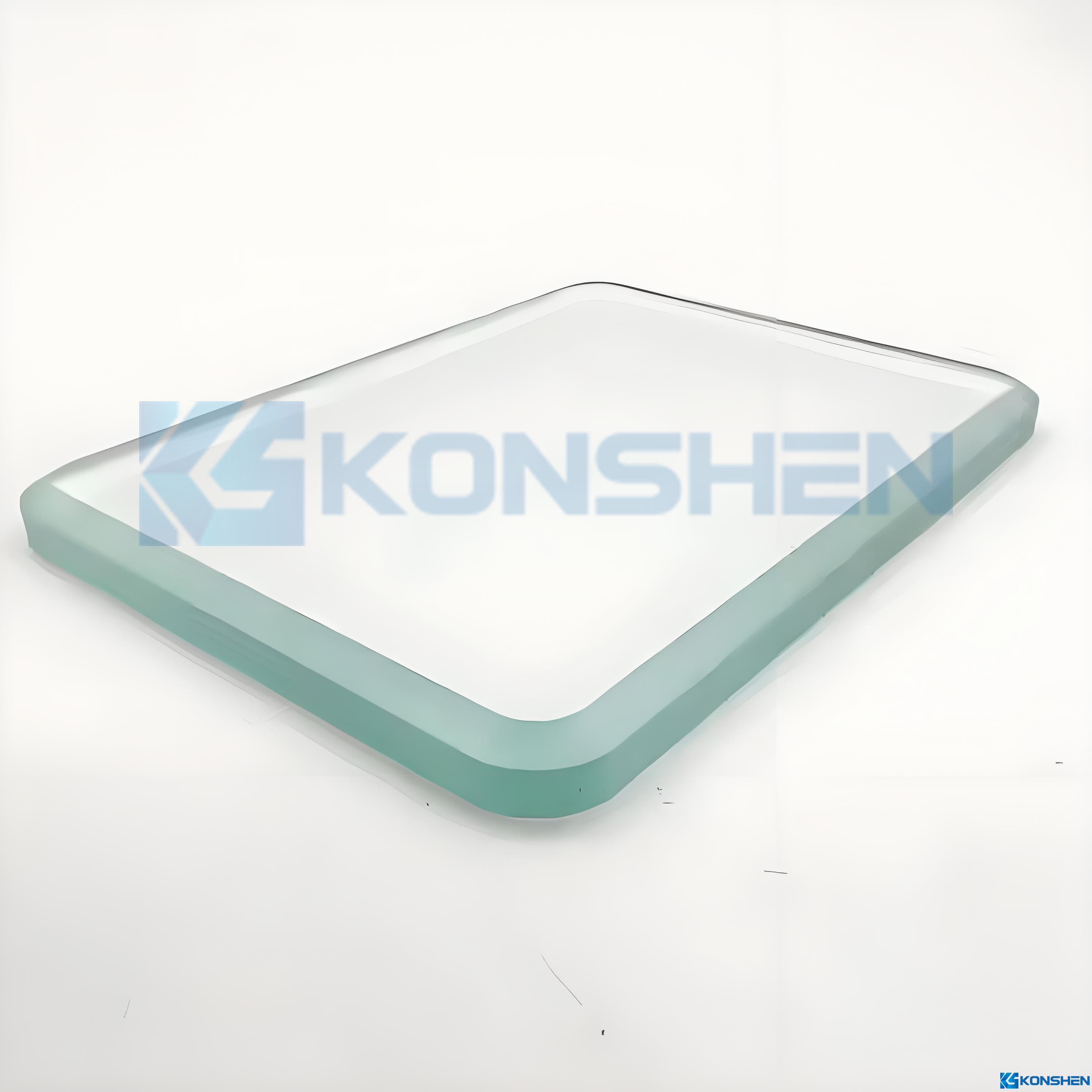

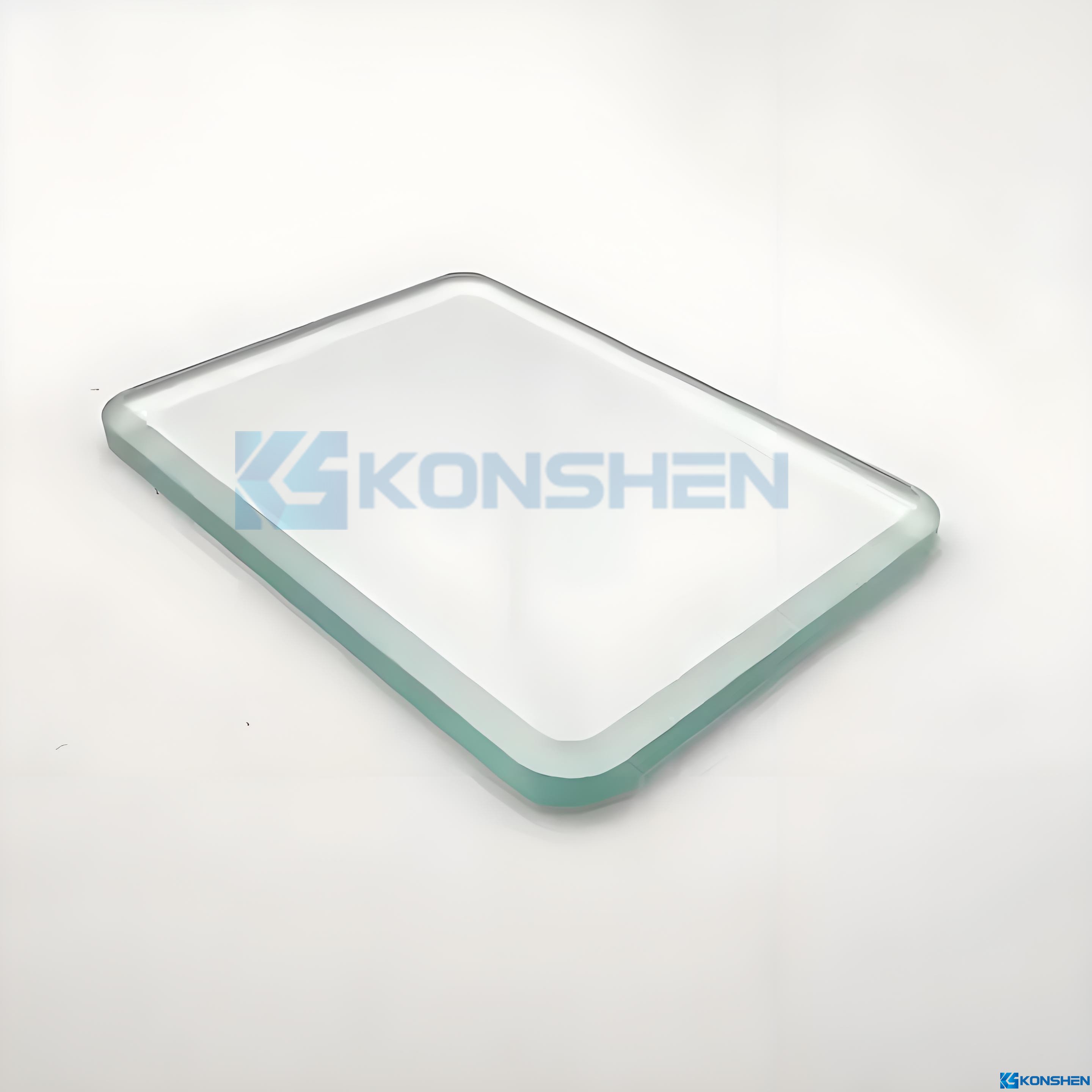

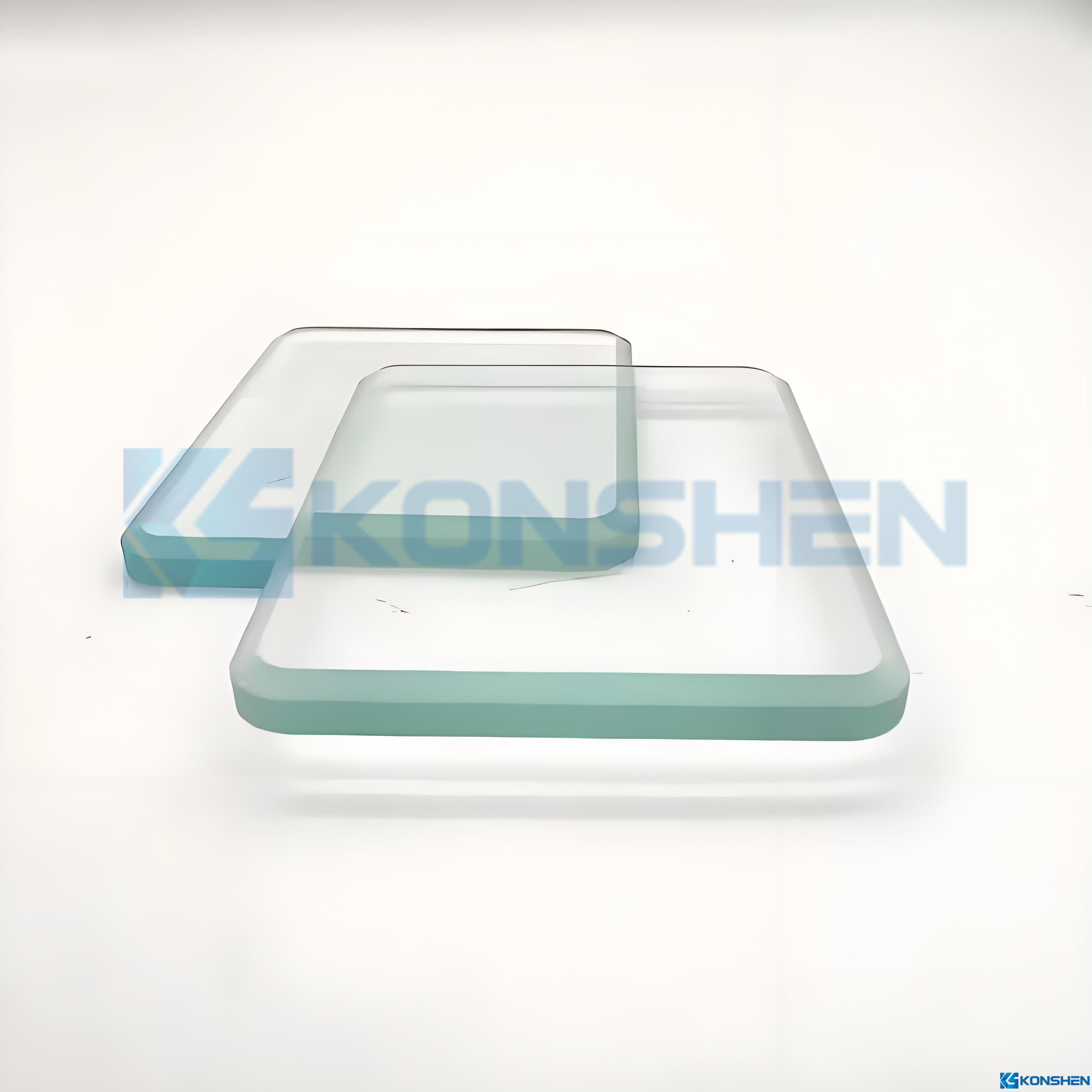

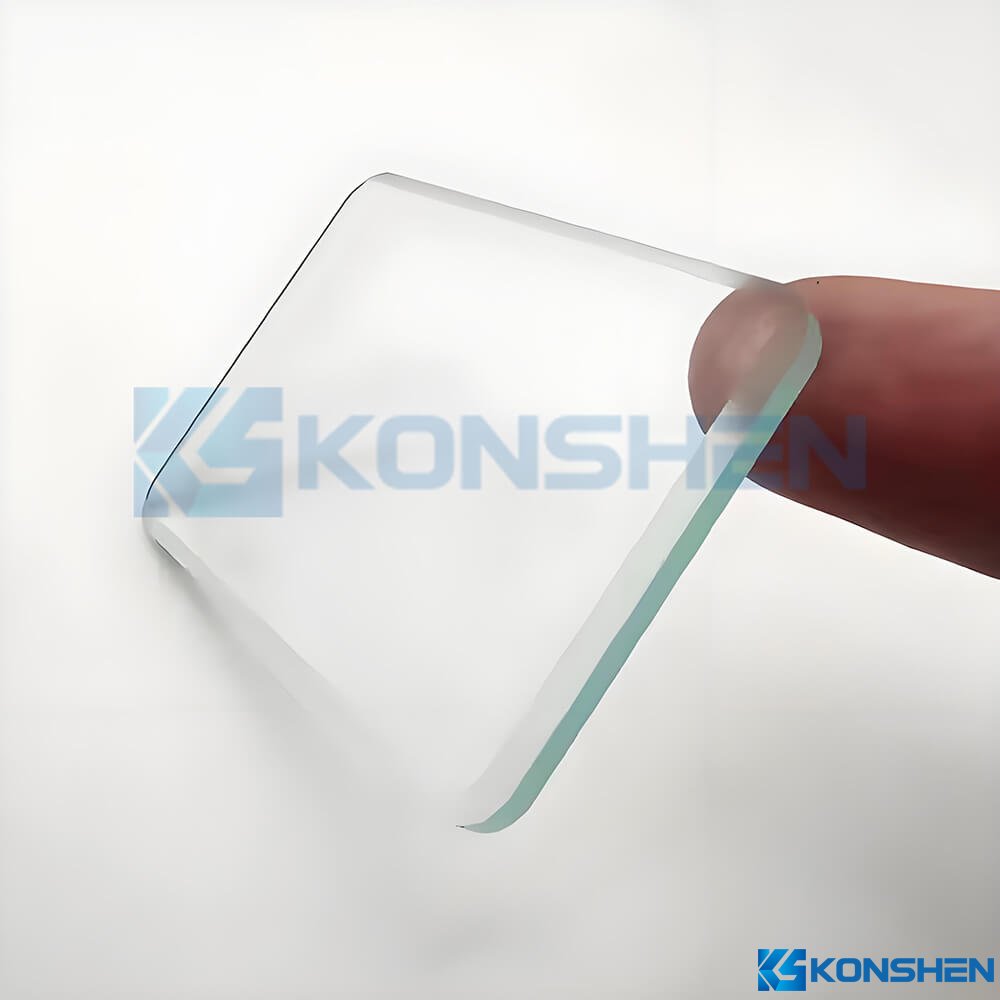

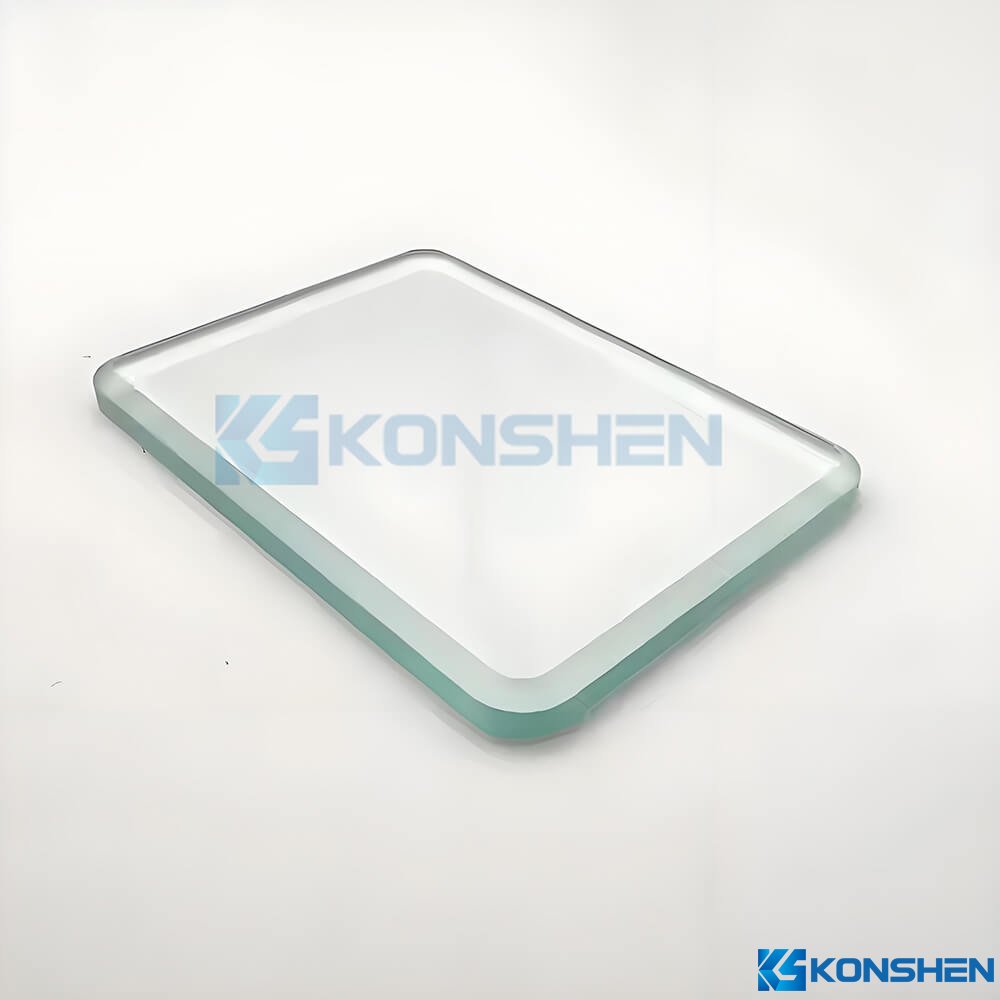

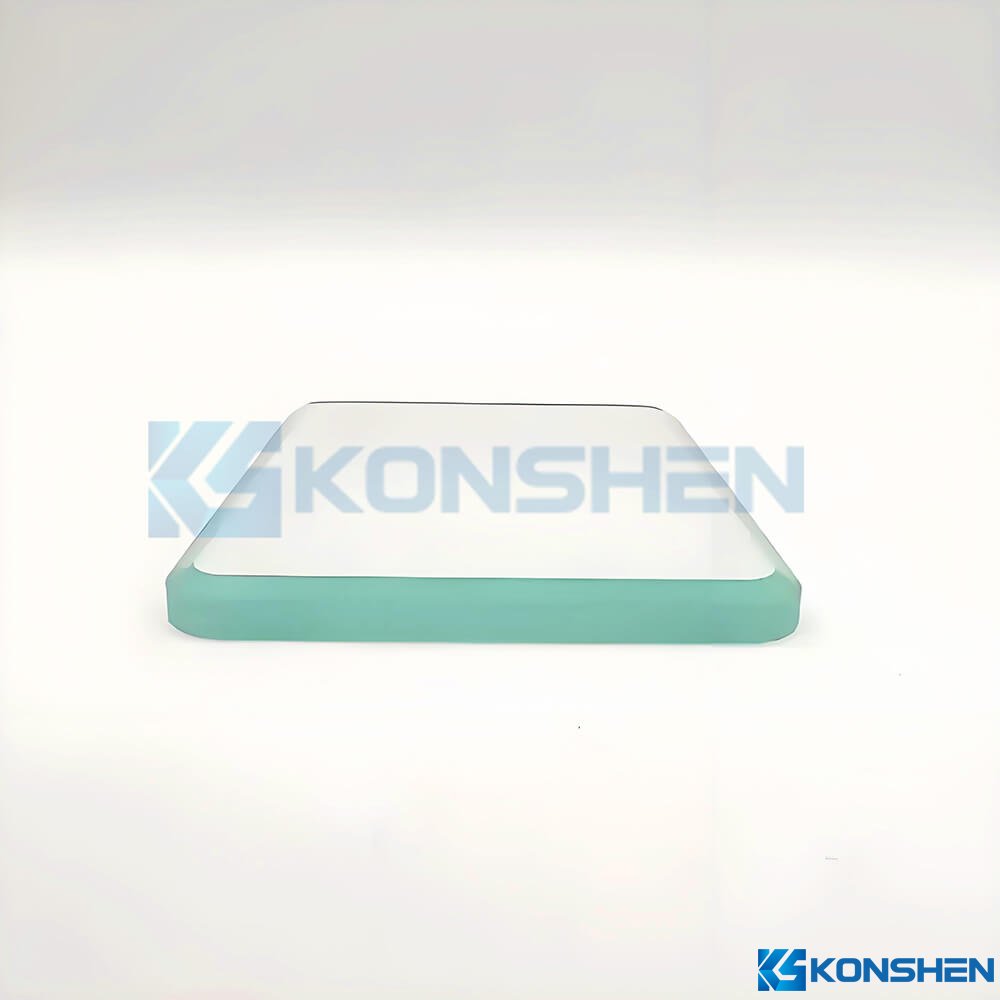

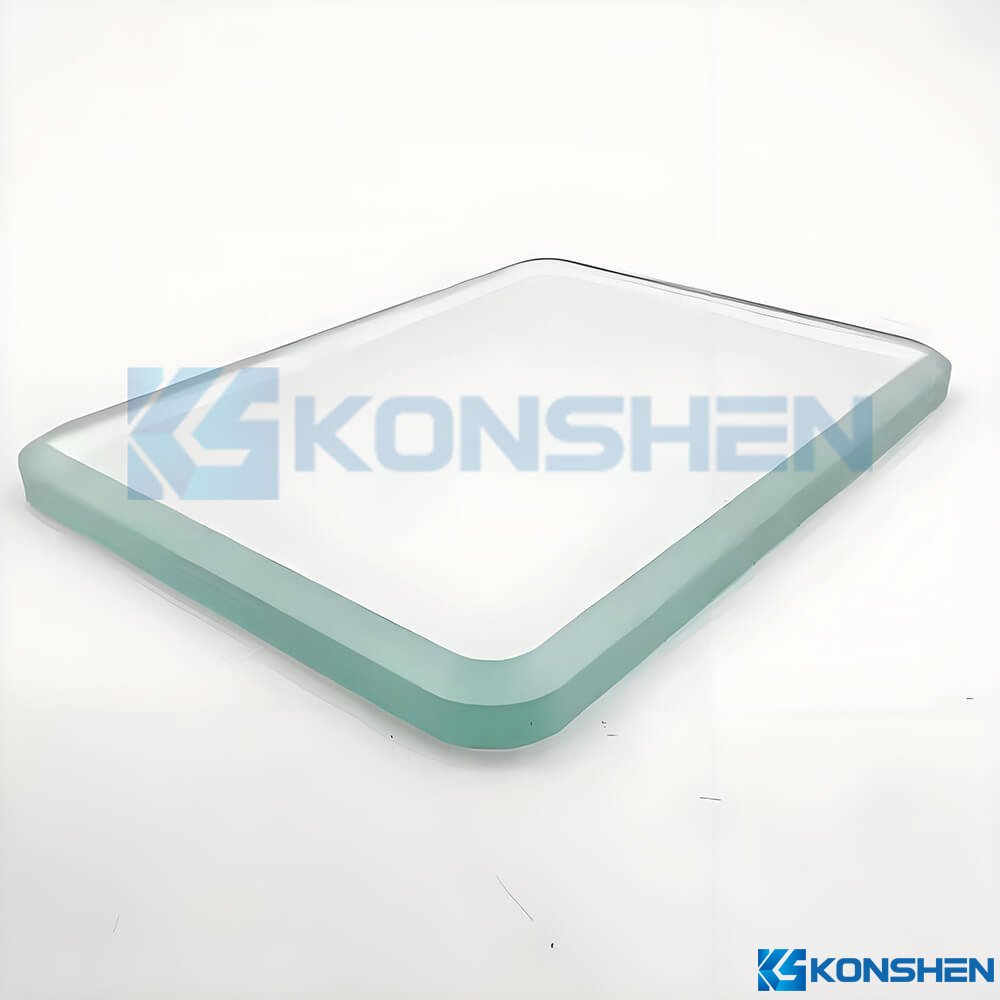

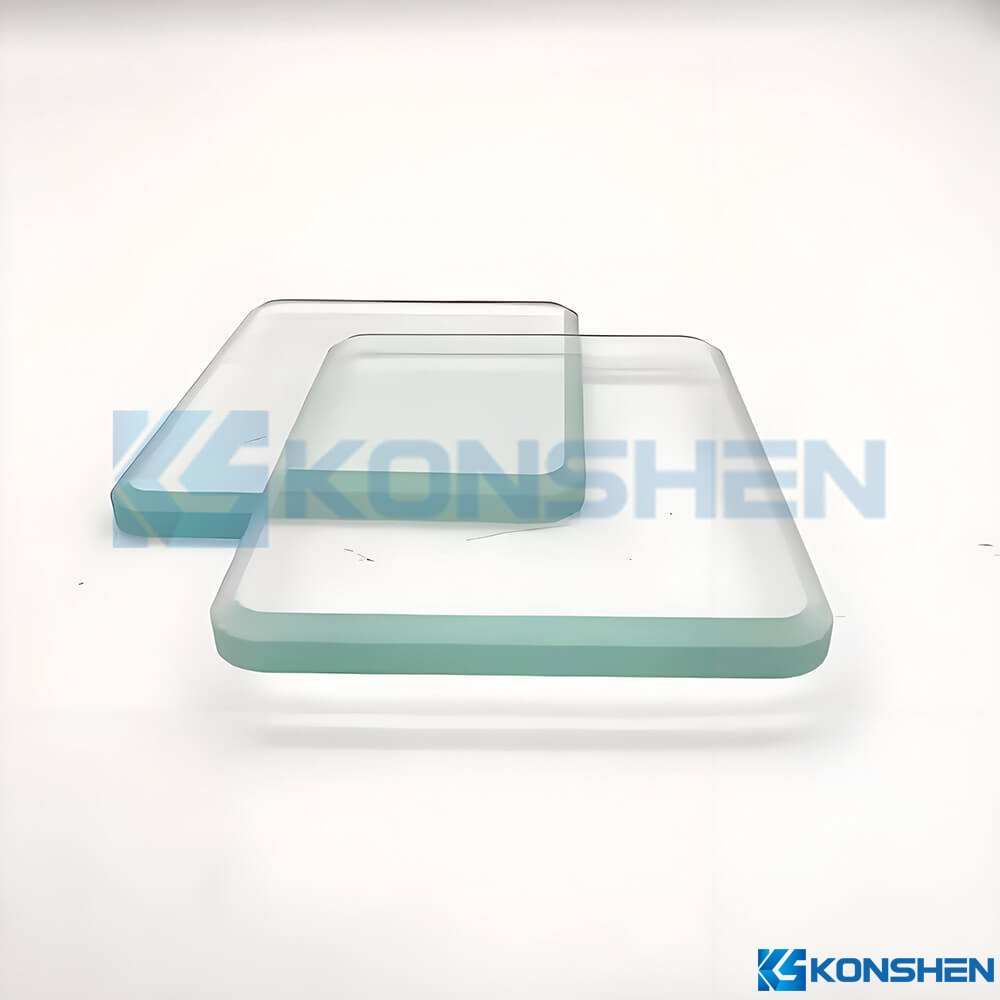

Customized 6mm IK09 Ultra Clear Tempered Glass with Chamfered Edges

Product Detail

Key Features:

High Light Transmission: Crafted from high-grade low-iron glass with >89% light transmittance, ensuring optimal visual performance for display and optical applications.
Safety Edge Processing: Precision edge processing improves both safety during handling and aesthetic integration into device enclosures or visible installations.
Superior Durability: Thick and stable glass body resists impact, thermal fluctuations, and mechanical stress, making it ideal for demanding industrial environments.
Clean Appearance: Smooth, dust-resistant edges ensure a polished, professional look for visible installations.

Customized Option:

Available Thickness: Ranging from 0.33 mm to 10 mm, depending on the insulation requirements and specific applications.
Size & Shape: Supports special-shaped cutting to meet diverse needs. Customizes as per drawing.
Cutting Option: CNC Cutting/Water jet Cutting/Diamond Blade Cutting.
Edge Options: Polished Edge/Safety Edge/Beveled Edge/Smooth Edge/2.5D Edge/Pencil Edge/Straight Edge.
Tempering Options: Physical Tempered/Checmical Strengthened.
Coating Options: Anti-Reflective (AR) Coating/Anti-Fingerprint (AF) Coating/Scratch-Resistant Coating or Anti-Glare (AG)Coating.
Printing Options: UV Printing/Silk screen printing/Laser engraving printing.
Adhesive Options: AB Tape/ Double-side Tape/3M Adhesive.

Technical Parameters

Materials: Ultra Clear Glass
Shape: Rectangular
Thickness: 6mm
Edge Work: Matt Edge+ Chamfered Corners
Tempered Method: Physical Tempered
Transmission Rate: ≥ 89%
Density: 2.5 g/cm³
Mohs Scale: ≥7H
Strengthness: IK09
Operating Temperature Range: Suitable for -30°C to 250°C.
Thickness Tolerances:± 0.2mm
Dimensional Tolerances:±0.5mm for large size; ±0.1mm for small size
Surface Quality: No visible scratches, bubbles, or inclusions under inspection light.
Weather Resistance: Strong resistance to high temperatures and humidity, reducing aging effects.

Application

Smart Home Control Panels: Used as a durable and sleek interface for smart thermostats, light control systems, and security hubs.
Industrial Equipment Displays: Applied in rugged environments where clarity, strength, and resistance to chemical or physical wear are essential.
Medical Device Interfaces: Ideal for touch-enabled control panels and monitor covers in medical environments requiring high hygiene and optical clarity.
Commercial Touchscreens: Integrated into kiosks, vending machines, and smart retail displays for improved user experience and visual appeal.
Public Information Terminals: Deployed in airports, stations, and museums as protective yet high-clarity glass interfaces.

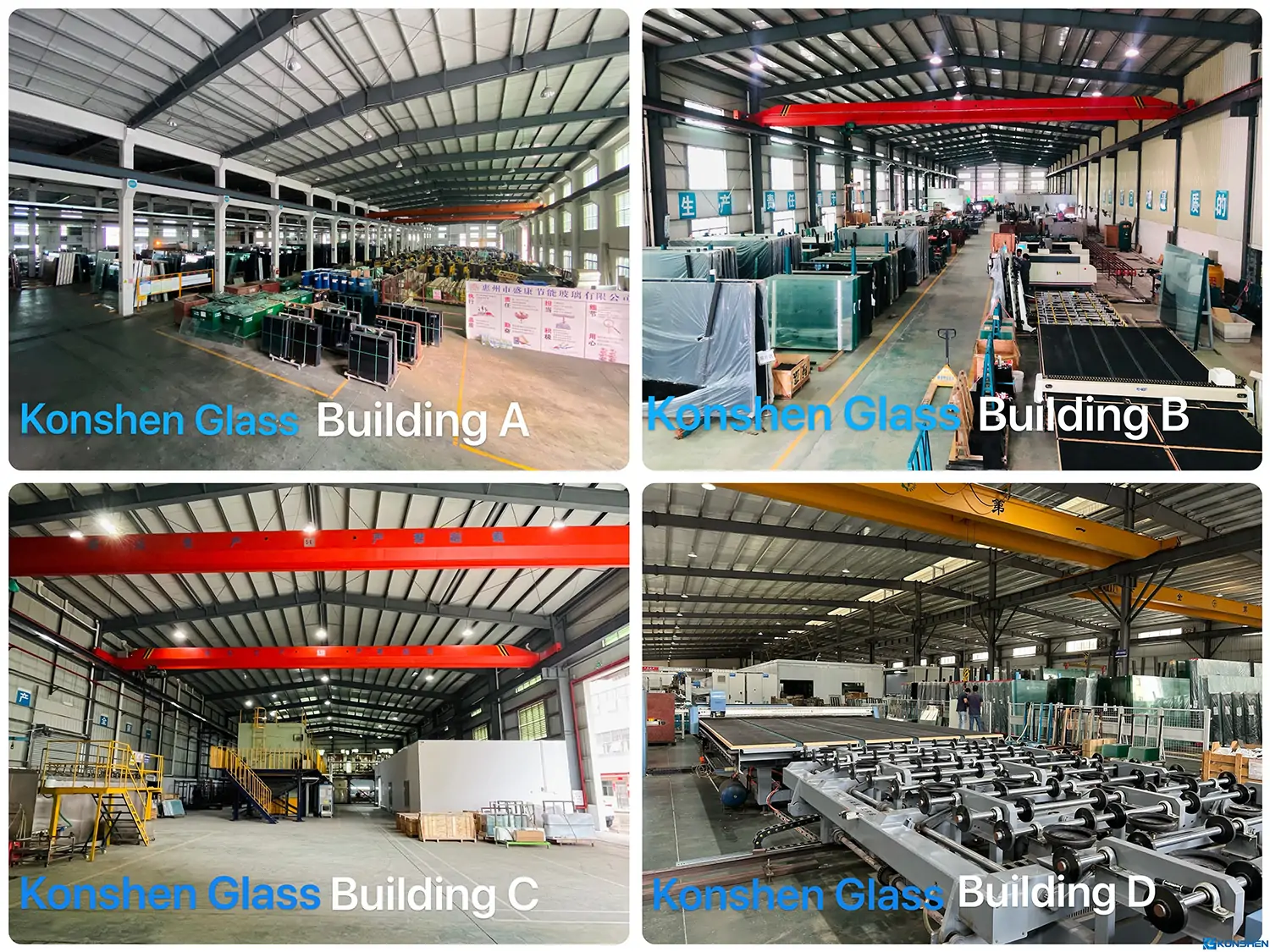

Company and factory equipment

Customer Visit

Company Profile

Dlivery & Payment

Packaging:

Step 1: PE film coating(Normally) / paper(For seashipment prevent wet).
Step 2: Kraft paper for fixation.
Step 3: Carton for glass safety protection.
Step 4: Custom make plywood case with hinge for custom(fumigation + convenient inspection) convenience.
Step 5: Packing strap for further fixation.
